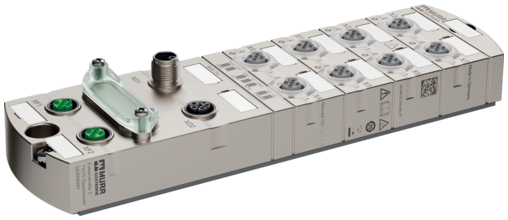

MVK Pro MPNIO DIO8 IOL8 M12L 4P 54600
Product may differ from image

MVK Pro MPNIO DIO8 IOL8 M12L 4P

PROFINET, compact module, metal
Art.No.: 54600
Weight: 0.92 kg
Country of origin:  DE
Available
Find similar Product
Ask question
 Recommend Product
 Product Comparison
List price per piece:
  • 635,63 €
  • 600,31 €
  • 565,00 €
Download to Easy-Import-Export

Description

Digital inputs/outputs
Ethernet 10/100 Mbit/s; M12, D-coded
IO-Link Master V1.1
M12 Power, 4-pole, L-coded
M12, 5-pole, A-coded
Housing fully potted.
Connection cables are in the online shop under "Connection Technology".
mounting compatible with I/O modules of the MVK series
Certificate
Certificate
Certificate

Electrical data | Supply
Norm operating voltage EN 61131-2
Operating voltage US DC 24 V
Operating voltage UA DC 24 V
Total current UA max. 16 A
Total current US max. 16 A
Electrical data | Input
Overload resistant yes
Short-circuit protected yes
Type input PNP, for 3-wire sensors or mechanical switches, IO-Link Devices
Sensor current US per input max. 2 A
Current carrying capacity max. 10 A
Electrical data | Output
Actuator current UA per output max. 2 A
Overload resistant yes
Short-circuit protected yes
Output current per pin max. 2 A
Max. current output per port 4 A
Total current output max. 10 A
Industrial communication
Supported protocol PROFINET
Web interface yes
Industrial communication | Profinet
Number of active connections (IO controller) max. 2
IRT (network communication) yes
PROFINET Netload Class III
PROFINET addressing DCP
PROFINET conformance class C
PROFINET specification V2.3
Shared device/input yes
Industrial communication | IO-Link
Automatic baudrate detection yes
IO-Link process data length output 32 Bytes
IO-Link process data length input 32 Bytes
IO-Link revision ID V1.1
IO-Link type 8× Master
IO-Link transmission rate COM1, COM2, COM3
Port Class A, B
Industrial communication | IIoT functions
Number of sessions / clients OPC UA max. 5
JSON integration REST-API, MQTT
OPC UA transport UA TCP, UA Secure Conversation, UA Binary Encoding
Voltage monitoring yes
Current Monitoring yes
Publishing interval OPC UA min. 100 ms
Diagnostics
Actuator warning per channel via LED and BUS
Diagnostic via BUS per module and channel
Diagnostic via LED per module and channel
IO-Link events No voltage, Undervoltage supply
Short circuit diagnosis yes
LED display Ethernet connection/data traffic
Cable break per port
Temperature control yes
Overload diagnosis yes
Device protection | Electrical
Degree of protection (EN IEC 60529) IP67
Mechanical data | Mounting data
Suitable for mounting type 2-hole screw mounting
Height 42 mm
Width 63 mm
Depth 225 mm
Environmental characteristics | Climatic
Operating temperature min. -25 °C
Operating temperature max. 70 °C
Storage temperature min. -40 °C
Storage temperature max. 80 °C

Connection types
Connection type 1 X0-X7
Connection type 2 XD1
Connection type 3 XD2
Connection type 4 XF1, XF2
Connection type 1
Family construction form M12
Gender female
Color contact carrier gray
Coding A
No. of poles 5
Connection type 2
Family construction form M12
Gender male
Color contact carrier black
Coding L
No. of poles 5
Connection type 3
Family construction form M12
Gender female
Color contact carrier black
Coding L
No. of poles 4
Connection type 4
Family construction form M12
Gender female
Color contact carrier green
Coding D
No. of poles 4

ECLASS-6.0 27242604
ECLASS-6.1 27242604
ECLASS-7.0 27242604
ECLASS-8.0 27242604
ECLASS-9.0 27242604
ECLASS-10.1 27242604
ECLASS-11.1 27242604
ECLASS-12.0 27242604
ETIM-5.0 EC001597

customs tariff number 85389099
GTIN 4048879859530
Packaging unit 1


Data Regarding Article:
  • Download Product-PDF
  • Download Approval: UL Listed CA 54600_E201820-NRAQ7_ulc_z_a.pdf
  • Download Approval: UL Listed US 54600_E201820-NRAQ_ul_z_a.pdf
  • Download Certificate: IO-Link 54600_V1-1_iol_z_a.pdf
  • Download Certificate: PROFIenergy 54600_Z40306-21.12.2024-v2.35-PROFIenergy_pbe_z_a.pdf
  • Download Certificate: ProfiNet  54600_Z13290-Z40306-21.12.2024-v2.35_pn_z_a.pdf
  • Download Configuration Files: GSDML 54600_MVK_Pro_KF0_x_19.zip
  • Download Construction files: DXF 54600_dxf_x_a.zip
  • Download Construction files: P8 54600_p8_2_12.zip
  • Download Construction files: STP 54600_stp_x_a.zip
  • Download Document: Installation guide 54600_ina_x_16.zip
  • Download Document: Product data 54600_pd_x_13.zip
  • Download Document: User manual 54600_hdb_x_13.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 07-11-20_(10) RoHS REACh exception 6c 7a 7cI_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity UKCA 54600_01-12.21_uk_z_a.pdf
  • Download Information: EU declaration of conformity 54600_01-12.21_ce_z_a.pdf
  • Download Information: MTTF Report 54600_SN29500(40°C)-Berechnung_mttf_p_a.pdf
  • Download Software: Firmwareupdatetool 10500955_AutoUpdateX_TB3_x_31.zip
  • Download Software: IO-Link-Device-Tool 10501019_IO-Link-Device-Tool_TRB_x_50.zip
