CUBE67 I/O EXTENSION MODULE  56603
Product may differ from image

CUBE67 I/O EXTENSION MODULE

16 digital inputs
Art.No.: 56603
Weight: 0.241 kg
Country of origin:  CZ
Out of Stock - Contact Us for Availability
 Product Comparison
List price per piece:
  • 201,51 €
  • 190,32 €
  • 179,12 €

Description

Expansion module
DI16 (E) PNP - 8× M12
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
Certificate
Certificate
Certificate

General data
Mounting method 2-hole screw mounting
Temperature range 0...+55 °C (storage temperature -20...+75 °C)
Protection IP67

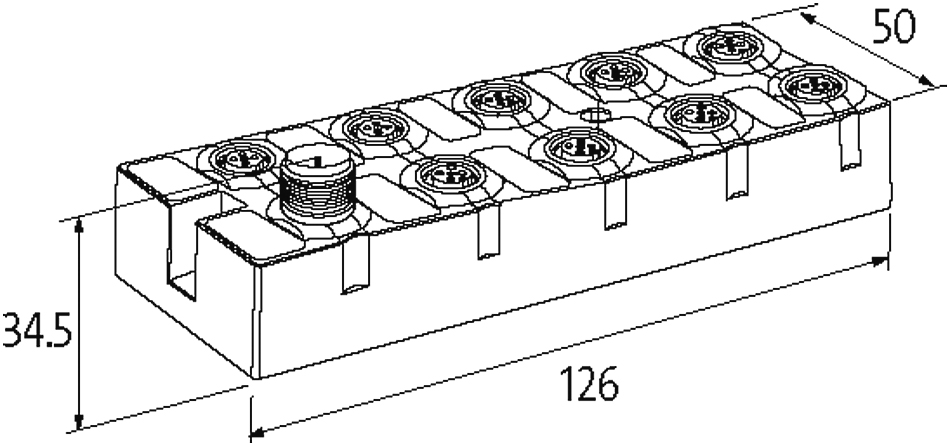

Dimensions H×W×D 126×50×34.5 mm
Input
Sensor supply US 24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected
Type for 3-wire sensors or mechanical switches, PNP
Input filter 1 ms
Internal communication
LED display US: sensor supply and internal supply voltage (green: OK); UA: actuator supply (green: OK)
Current consumption max. 50 mA
Parameterization
PIN 4 Input
PIN 2 Input/Diagnostic
Connections
Fieldbus via internal system connection
Sensor-system/actuator supply via internal system connection (max. 2× 4 A)
I/O ports M12 (female) 5-pole, A-coded
Product article number of manufacturer 56603
Diagnostic
Communication status via LED
Diagnostic via BUS per module and channel
Diagnostic via LED per module and channel
Monitoring - under voltage yes
Monitoring - no voltage yes
Short-circuit and overload yes

ECLASS-6.0 27242604
ECLASS-6.1 27242604
ECLASS-7.0 27242604
ECLASS-8.0 27242604
ECLASS-9.0 27242604
ECLASS-10.1 27242604
ECLASS-11.1 27242604
ECLASS-12.0 27242604
ETIM-5.0 EC001599
customs tariff number 85389099
EAN 4048879048576
Packaging unit 1


Data Regarding Article:
  • Download Data Sheet
  • Download Approval: UL Listed CA 56603_E201820_NRAQ7_ulc_z_a.pdf
  • Download Approval: UL Listed US 56603_E201820-NRAQ_ul_z_b.pdf
  • Download Construction files: DXF 56603_dxf_x_a.zip
  • Download Construction files: P8 56603_p8_2_50.zip
  • Download Construction files: STP 56603_stp_x_a.zip
  • Download Document: Installation guide 56601_ina_x_10.zip
  • Download Document: Product data 56603_pd_x_10.zip
  • Download Document: User manual 56975_hdb_x_12.zip
  • Download Document: User manual 56970_hdb_x_25.zip
  • Download Document: User manual 56971_hdb_x_36.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 07-11-20_(10) RoHS REACh exception 6c 7a 7cI_DoC_z_a.pdf
  • Download Information: Certificate of conformity UKCA 56603_02-12.22_uk_z_b.pdf
  • Download Information: EU declaration of conformity 56603_02-12.22_ce_z_d.pdf
  • Download Information: MTTF Report 56603_SN29500(40°C)-Berechnung_mttf_p_d.pdf
