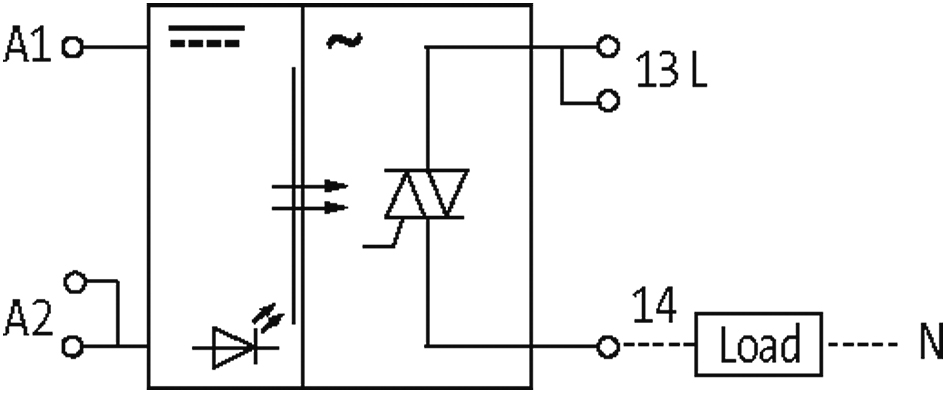

AMS 20-47/4 OPTO-COUPLER MODULE
IN: 53 VDC - OUT: 250 VAC / 4 A
Art.No.: | 50034 |
Alternative product: | 3000-36001-2000020 |
Weight: | 0.088 kg |
Country of origin: | CZ |
Available
Description
Triac 4 A
Control voltage 230 V AC on request
Control voltage 230 V AC on request


Technical Data
Input
Voltage range OFF | 0...3 V DC |
---|---|
Voltage range ON | 10...53 V DC |
LED display | LED (red) |
Input current | 10 mA |
Output
Leakage current (output is open) | max. 10 mA |
---|---|
Switching time ON/OFF | 10/10 ms |
Saturation voltage (across output) | max. 1.4 V AC |
Switching voltage | 24...250 V AC |
Switching frequency | max. 30/5 Hz (resist./ind.) |
Switching current per output | 10 mA...4 A |
General data
Mounting method | DIN-rail mountable TH35 or G32 (EN 60715) |
---|---|
Temperature range | -20...+60 °C |
Test isolation voltage | 6.0 kV |
Housing | Black plastic, flame retardant |
Dimensions H×W×D | 75×22.5×85 mm |
Commercial data
ECLASS-6.0 | 27371604 |
---|---|
ECLASS-6.1 | 27371604 |
ECLASS-7.0 | 27371604 |
ECLASS-8.0 | 27371604 |
ECLASS-9.0 | 27371604 |
ECLASS-10.1 | 27371604 |
ECLASS-11.1 | 27371604 |
ECLASS-12.0 | 27371604 |
ETIM-5.0 | EC001504 |
customs tariff number | 85414900 |
EAN | 4048879028066 |
Packaging unit | 1 |
