7/8'' male 0° screw terminal
5-pol., max. 1,5mm², 6 -8mm
| Art.No.: | 7000-78081-0000000 |
| Alternative product: | 7000-78091-0000000 |
| Weight: | 0.056 kg |
| Country of origin: | DE |
Available
Description

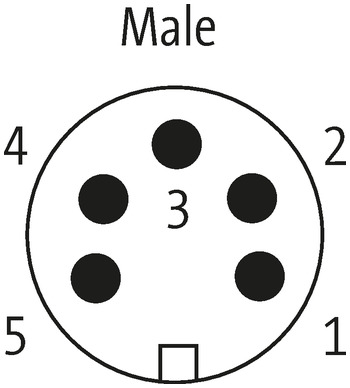

Male straight
7/8" (5-pole)
Screw terminals
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
7/8" (5-pole)
Screw terminals
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Technical Data
Side 1
| Tightening torque head 1 | 1,5 Nm |
|---|---|
| Thread | 7/8" |
Electrical data | Supply
| Operating voltage AC max. | 250 V |
|---|---|
| Operating voltage DC max. | 250 V |
| Current operating per contact max. | 9 A |
Installation
| Connection cross section max. | 1,5 mm² |
|---|
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67 |
|---|---|
| Protection degree additional condition | inserted, screwed |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
|---|---|
| Clamping range min. | 6 mm |
| Clamping range max. | 8 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 85 °C |
Commercial data
| ECLASS-6.0 | 27279218 |
|---|---|
| ECLASS-6.1 | 27260702 |
| ECLASS-7.0 | 27440102 |
| ECLASS-8.0 | 27440102 |
| ECLASS-9.0 | 27440116 |
| ECLASS-10.1 | 27440102 |
| ECLASS-11.1 | 27440102 |
| ECLASS-12.0 | 27440116 |
| ETIM-5.0 | EC002635 |
| customs tariff number | 85366990 |
| GTIN | 4048879134781 |
| Packaging unit | 1 |
